1″ Convoluted Bore PTFE c/w Single Stainless Steel Braid
£59.40 Incl. VAT£49.50 Excl. VAT
- Delivery & ReturnAll orders are despatched within 3-5 days of receiving the order unless there is a problem due to unforseen circumstances, in which case we will notify you as soon as possible. Orders using UK Shipping are despatched via Fed Ex couriers on a next day before 5.00pm service. Our standard delivery charge for UK Shipping is £9.50 plus VAT but all orders over £150 excluding VAT delivery is free of charge*. For small orders under £5 we offer a Royal Mail 3-5 day delivery option at £5 plus VAT. If you wish to make your own arrangements for carriage, please add the details in the notes section of your order. Should you require clarification on any of the above points, feel free to telephone us on Harrogate 01423 712038. *Applies to mainland UK only. Additional charges may apply for the Highlands and Islands of Scotland and Ireland.

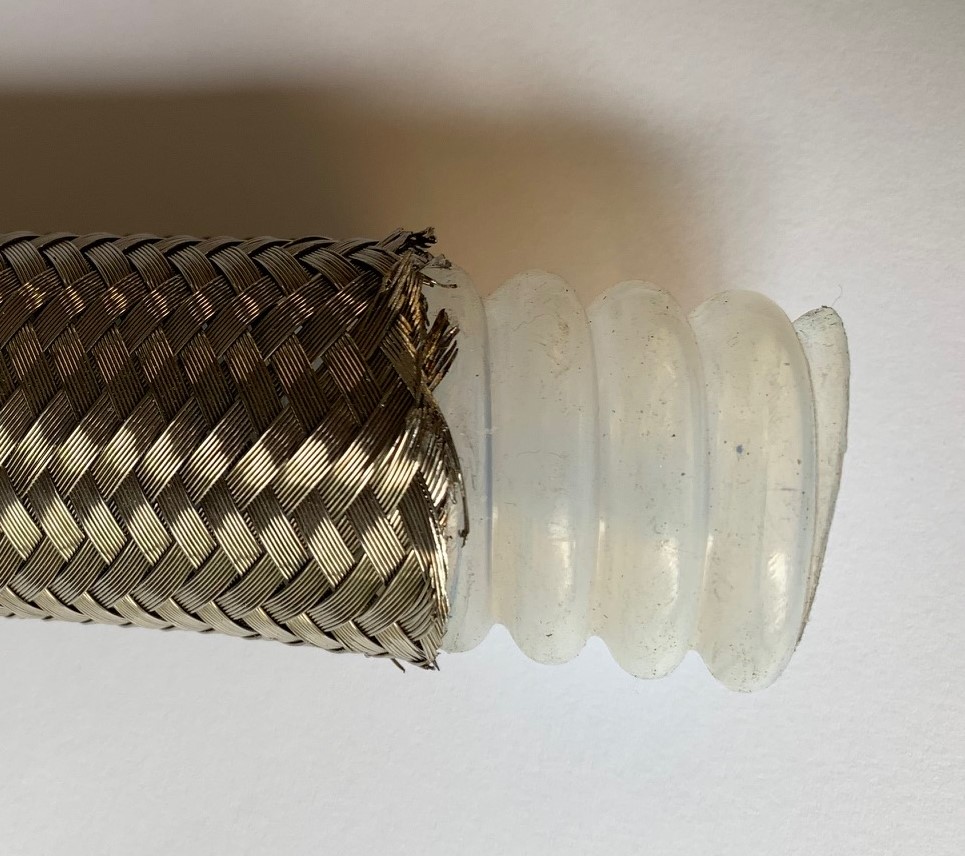

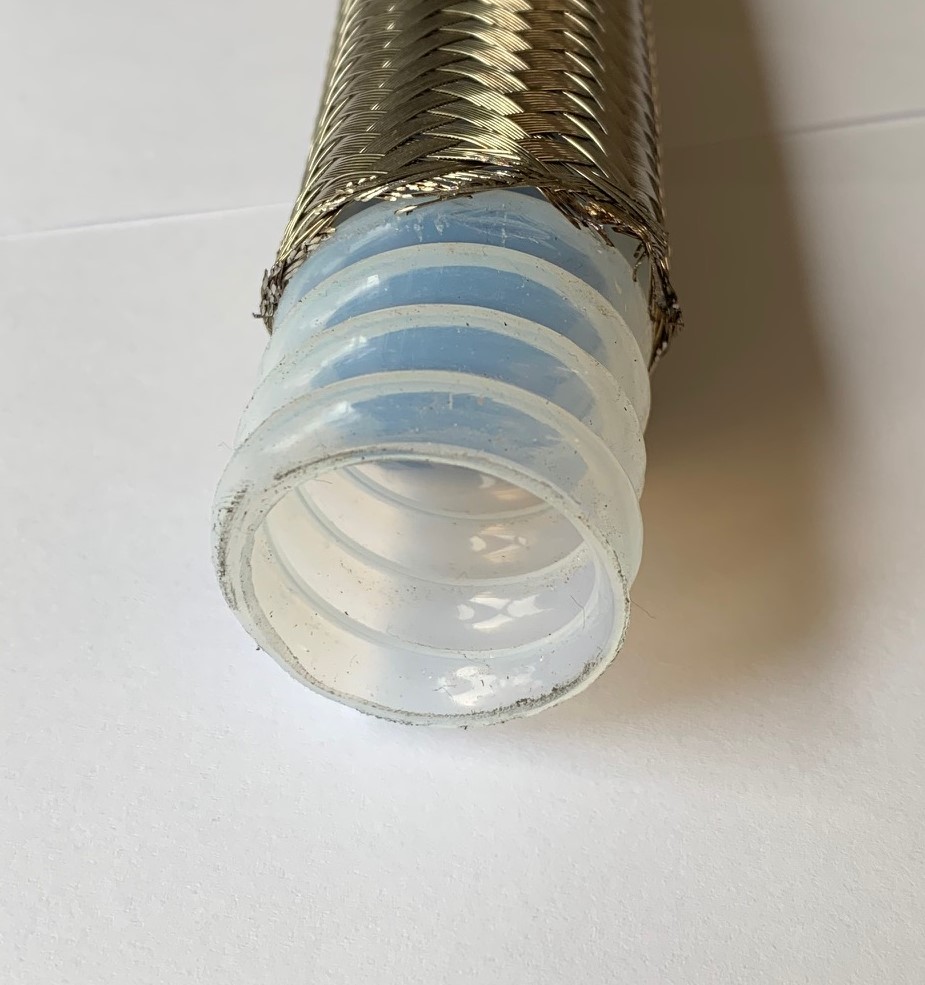

1″ Convoluted Bore PTFE c/w Single Stainless Steel Overbraid
Convoluted bore PTFE internal tube with single stainless steel braid outer
Price: Per Metre, for longer lengths just increase the quantity (e.g: Qty 5 = 5 Mtr continuous length)
Actual Internal diameter: 25.5mm
Outside diameter: 32mm
PTFE Wall Thickness: 1.00mm
Minimum Bend Radius: 63mm
Maximum Working Pressure: 26Â Bar (375psi)
Convoluted – The Max. working pressure listed above should be reduced by 1% for each 1 degC above 130 degC up to a maximum of 230 degC.
Temperature Range:Â Â -150ËšC to +230ËšC (dependent upon the hose design and the application conditions).
Weight: 0.47 Kg/Mtr
