Double Ply Neoprene Ducting x 4 Mtr
From £65.00 Excl. VAT
Double Ply Neoprene Ducting – Lined x 4 Mtr length
Description:

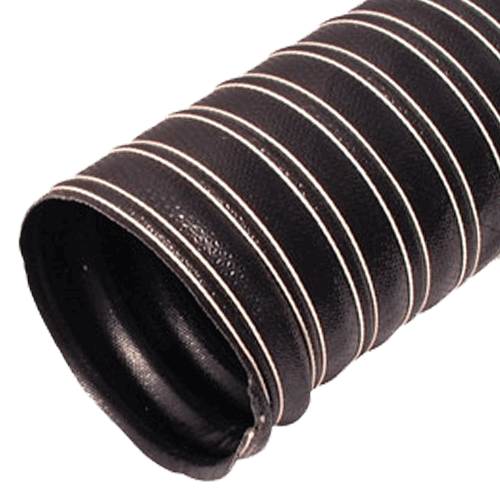

Double ply neoprene ducting is made of two layers of neoprene coated glass fibre fabric, an encapsulated stainless spring steel helix between the plies and outer twin neoprene coated glass fibre cords.
Applications:
Conveying hot or cold air, fumes and light powders and dust at low pressure. For granulated/plastic dryers, hot air drying machines in the plastic industry, blown film industry, ink drying plus automotive and transportation applications.
Key Features:
Very flexible and lightweight
Good heat resistance
Smooth internal
Small bend radius for installation in tight spaces
Temperature Range:
-50 Deg C to + 150 Deg C (in 20 Deg C ambient)
Price is per 4 Mtr length (other lengths available on request)
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 25mm | 28mm | 2.8 Bar | 15mm | 0.62 |
| 32mm | 35mm | 2.7 Bar | 16mm | 0.76 |
| 38mm | 41mm | 2.6 Bar | 18mm | 0.85 |
| 40mm | 43mm | 2.6 Bar | 18mm | 0.85 |
| 51mm | 55mm | 2.6 Bar | 24mm | 1.1 |
| 57mm | 61mm | 2.5 Bar | 61mm | 1.26 |
| 60mm | 64mm | 2.5 Bar | 31mm | 1.32 |
| 63mm | 67mm | 2.4 Bar | 31mm | 1.42 |
| 70mm | 76mm | 2.1 Bar | 35mm | 1.5 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 76mm | 81mm | 2.1 Bar | 38mm | 1.8 |
| 80mm | 85mm | 2.1 Bar | 40mm | 1.9 |
| 83mm | 88mm | 2.1 Bar | 42mm | 2 |
| 89mm | 94mm | 2.0 Bar | 44mm | 2.2 |
| 102mm | 107mm | 1.9 Bar | 52mm | 2.5 |
| 115mm | 120mm | 1.5 Bar | 59mm | 3.2 |
| 127mm | 133mm | 1.5 Bar | 64mm | 3.5 |
| 152mm | 158mm | 1.2 Bar | 75mm | 4.3 |
Other sizes and lengths are available on request
For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.netOther sizes and lengths are available on request.
