Single Ply Neoprene Ducting x 4 Mtr
From £52.00 Excl. VAT
Single Ply Neoprene Ducting – Unlined x 4 Mtr length
Description:

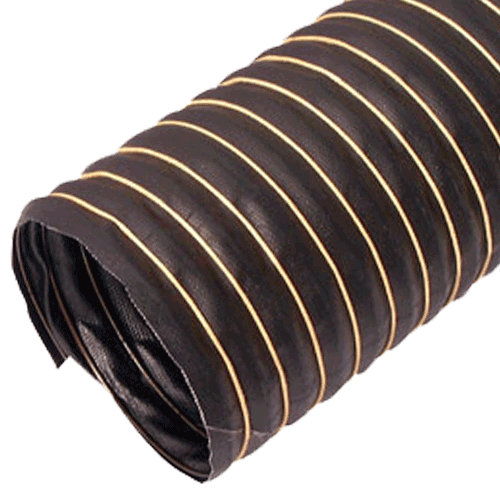

Single ply neoprene ducting is made from one layer of neoprene coated glass fibre fabric, an internal stainless steel helix and a single outer neoprene coated glass fibre cord.
Applications:
Conveying hot or cold air, fumes and light dust at low pressure. For granulated/plastic dryers, hot air drying machines in the plastic industry, blown film industry, ink drying plus automotive and transportation applications.
Key Features:
Very flexible and lightweight
Good heat resistance
Smooth internal
Small bend radius for installation in tight spaces
Temperature Range:
-50 Deg C to + 150 Deg C (in 20 Deg C ambient)
Price is per 4 Mtr length (other lengths available on request)
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 19mm | 22mm | 1.8 Bar | 8mm | 0.4 |
| 25mm | 28mm | 1.5 Bar | 8mm | 0.52 |
| 32mm | 35mm | 1.5 Bar | 10mm | 0.6 |
| 38mm | 41mm | 1.5 Bar | 12mm | 0.76 |
| 40mm | 43mm | 1.5 Bar | 13mm | 0.8 |
| 51mm | 54mm | 1.5 Bar | 16mm | 1.1 |
| 57mm | 60mm | 1.3 Bar | 18mm | 1.26 |
| 60mm | 63.5mm | 1.3 Bar | 20mm | 1.32 |
| 63mm | 66.5mm | 1.3 Bar | 22mm | 1.4 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 70mm | 73.5mm | 1.2 Bar | 24mm | 1.50 |
| 76mm | 79.5mm | 1.1 Bar | 27mm | 1.6 |
| 80mm | 83.5mm | 1.1 Bar | 28mm | 1.65 |
| 83mm | 86.5mm | 1.1 Bar | 28mm | 1.72 |
| 89mm | 92.5mm | 1.1 Bar | 29mm | 2.58 |
| 102mm | 106mm | 1.1 Bar | 35mm | 3.2 |
| 115mm | 119mm | 1 Bar | 40mm | 3 |
| 127mm | 131mm | 0.9 Bar | 46mm | 3.16 |
| 152mm | 156.5mm | 0.8 Bar | 51mm | 3.8 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 180mm | 185mm | 0.6 Bar | 60mm | 3.9 |
| 203mm | 208mm | 0.6 Bar | 68mm | 5.04 |
| 254mm | 259mm | 0.4 Bar | 102mm | 6 |
| 306mm | 311mm | 0.1 Bar | 123mm | 7.5 |
Other sizes and lengths are available on request.
For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.net
