Hydraulic Hose
Part No: SPTF0021-06 Dimensions: 19mm O/D x 9.5mm (3/8") Bore x 1 Metre, for longer lengths...
Part No: SPTF0021-08 Dimensions: 22.2mm O/D x 12.7mm (1/2") Bore x 1 Metre, for longer lengths...
Part No: SPTF0011-06 Dimensions: 18.1mm O/D x 9.5mm (3/8") Bore x 1 Metre, for longer lengths...
Part No: SPTF0011-08 Dimensions: 20.6mm O/D x 12.7mm (1/2") Bore x 1 Metre, for longer lengths...
1 Inch Single Wire Hydraulic Hose Part No: SPTF0011-16 Dimensions: 35.6mm O/D x 25.4mm (1") Bore...
Part No: SPTF0021-04 Dimensions: 15mm O/D x 6.4mm (1/4") Bore x 1 Metre, for longer lengths...
Part No: SPTF0011-12 Dimensions: 27.7mm O/D x 19mm (3/4") Bore x 1 Metre, for longer lengths...
Part No: SPTF0011-10 Dimensions: 23.7mm O/D x 16mm (5/8") Bore x 1 Metre, for longer lengths...
Part No: SPTF0021-12 Dimensions: 29.3mm O/D x 19mm (3/4") Bore x 1 Metre, for longer lengths...
Part No: SPTF0011-04 Dimensions: 13.4mm O/D x 6.4mm (1/4") Bore x 1 Metre, for longer lengths...
Part No: SPTF0021-10 Dimensions: 25.4mm O/D x 16mm (5/8") Bore x 1 Metre, for longer lengths...

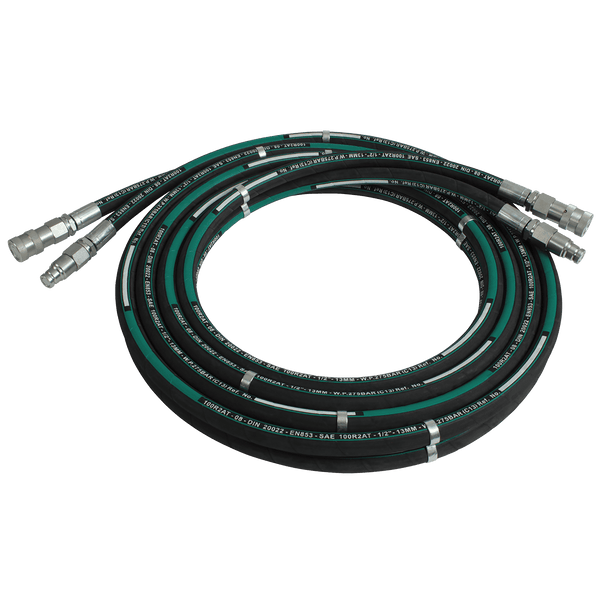

Price is per pair of hoses complete with Flat Face Quick Release Couplings. Hoses are supplied...
1 Inch Bore Single Wire Hydraulic Hose Part No: SPTF0021-16 Dimensions: 38.1mm O/D x 25.4mm (1")...

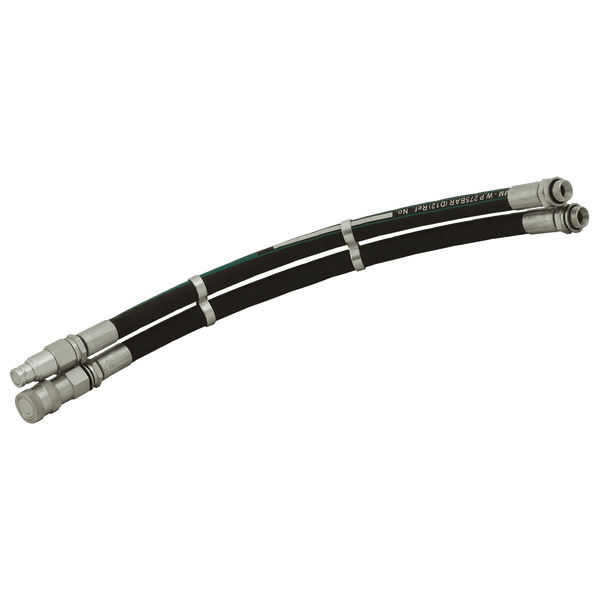

Price is per pair of hoses complete with 1 x Male and 1 x Female Flat...

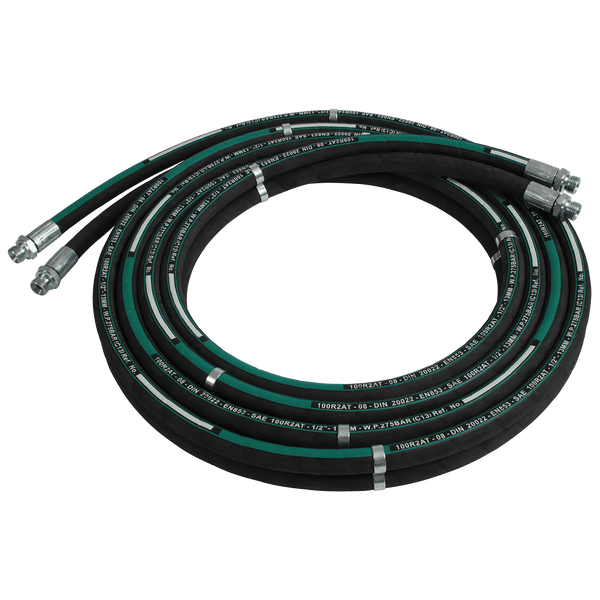

Price is per pair of hoses without Quick Release Couplings. Hoses are supplied clamped together Hose...
Part No: SPTF0011-32 Dimensions: 64mm O/D x 50.8mm (2") Bore Colour: Black Pressure: Max working pressure...
Part No: SPTF0011-24 Dimensions: 50.6mm O/D x 38.1mm (1.1/2") Bore Colour: Black Pressure: Max working pressure...
Part No: SPTF0011-20 Dimensions: 43.5mm O/D x 31.8mm (1.1/4") Bore Colour: Black Pressure: Max working pressure...
Part No: SPTF0021-32 Dimensions: 67.3mm O/D x 50.8mm (2") Bore Colour: Black Pressure: Max working pressure...
Part No: SPTF0021-24 Dimensions: 54.6mm O/D x 38.1mm (1.1/2") Bore Colour: Black Pressure: Max working pressure...
Part No: SPTF0021-20 Dimensions: 48.3mm O/D x 31.8mm (1.1/4") Bore Colour: Black Pressure: Max working pressure...
Cannot find the size or length you need? Call 01423 712038 or email sales@hoseshop.net for a bespoke quotation.
Hydraulic Hoses
Hose Shop are the leading supplier of Hydraulic Hose for a range of purposes most notably for forming hydraulic lines to deal with a variety of pressures. Hydraulic hose is commonly found in a wide range of industrial systems, where liquids or gases need to be transferred from one place to another at a specific pressure. The most common type of transmissions are either oil or water.
Hydraulic hose is a high pressure hose made from reinforced synthetic rubber. We offer hydraulic hoses in one or two wire varieties. Hydraulic hoses are hugely important, due to their versatility in terms of their applications as well as the fact that they are a vital part of a vast amount of machinery to function.
Our hydraulic hoses are durable; rot, weather and oil resistant; suitable for a range of hydraulic lines. If you require more information about hydraulic hose, then call 01423 712038 or email us.
|

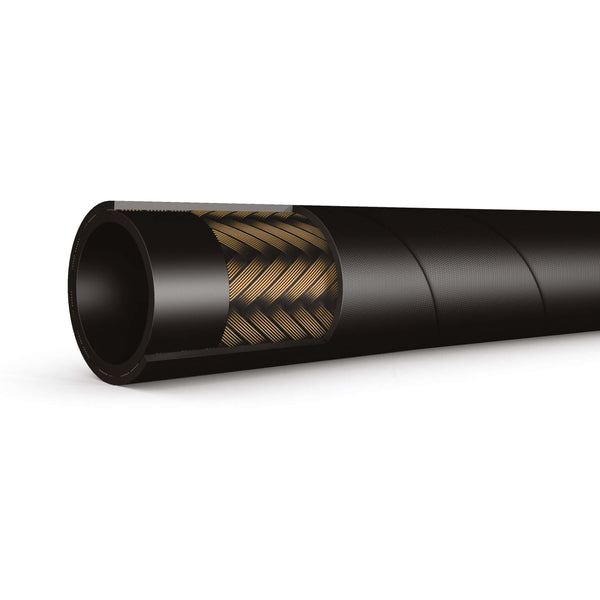

1 Wire Hydraulic Hose Suitable for medium pressure hydraulic lines. SAE 100 R1AT/DIN EN 853 1SN |

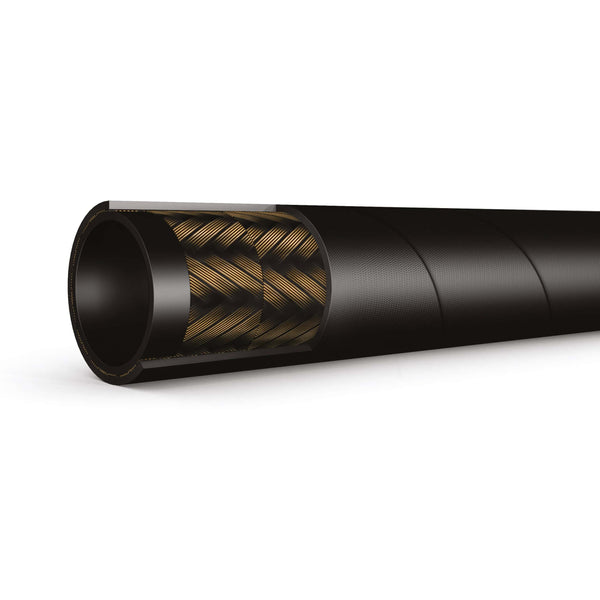

2 Wire Hydraulic Hose Suitable for high pressure hydraulic lines. SAE 100 R2T/DIN EN 853 2SN |
Hose Assemblies: If you would like us to supply complete fully swaged hoses, please order parts and correct length of hose, in the notes section of your order type a description of your requirements.
If you would like to build a Hydraulic Hose Assembly click here
Example: 1/2″ Bore 2 Wire hydraulic hose x 500mm (hose cut length, remember to add fittings dimension to total length) long c/w 1/2″ BSP Female Straight and 1/2″ BSP Fem Swept 90 fittings.
For more information about our hydraulic hoses and hydraulic hose fittings, then call us on 01423 712038 or email us!
There is more information about hydraulic hoses on our blog!
