Rubber Lined P Clips
Pipe diameter: 20mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 10mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 12mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 22mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 19mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 16mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 15mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 9mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 8mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 6mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 8mm (minimum)Band width: 12.7mm over rubberFastening: M4/M5P Clips are manufactured from a flexible mild...
Pipe diameter: 44mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 27mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 18mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 25mm (minimum) Band width: 12.7mm over rubber Fastening: M4/M5 P Clips are manufactured...
Pipe diameter: 18mm (minimum)Band width: 12.7mm over rubberFastening: M4/M5P Clips are manufactured from a flexible mild...
Pipe diameter: 10mm (minimum) Band width: 12.7mm over rubber Fastening: M4/M5 P Clips are manufactured...
Pipe diameter: 30mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 25mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 21mm (minimum) Band width: 12.7mm over rubber Fastening: M6 P Clips are manufactured...
Pipe diameter: 14mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 13mm (minimum)Band width: 12.7mm over rubberFastening: M6P Clips are manufactured from a flexible 304...
Pipe diameter: 44mm (minimum) Band width: 12.7mm over rubber Fastening: M4/M5 P Clips are manufactured...
Pipe diameter: 20mm (minimum)Band width: 12.7mm over rubberFastening: M4/M5P Clips are manufactured from a flexible mild...
Cannot find the size or length you need? Call 01423 712038 or email sales@hoseshop.net for a bespoke quotation.

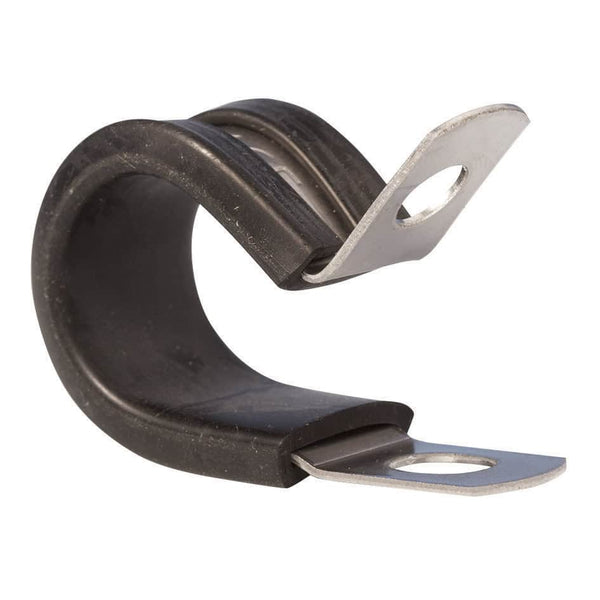

Rubber Lined P Clips are manufactured from a flexible steel or stainless steel one piece band with an EPDM rubber liner. The band features a stepped design to allow the clip to sit flush, with the rubber liner in place.
The single piece construction means that there are no joins which makes the clip very strong. The upper hole has an elongated design allowing easy fitting of the clip.
The rubber liner is manufactured in a corresponding profile to be secure in its position on the clip and ensures a tight fit as well as vibration damping and sound insulation.
EPDM rubber offers several advantages over alternatives such as, a wide operating temperature range, resistance to UV (ultra violet) weathering and resistance to creep.
Temperature range: -50 to +150 Deg C
