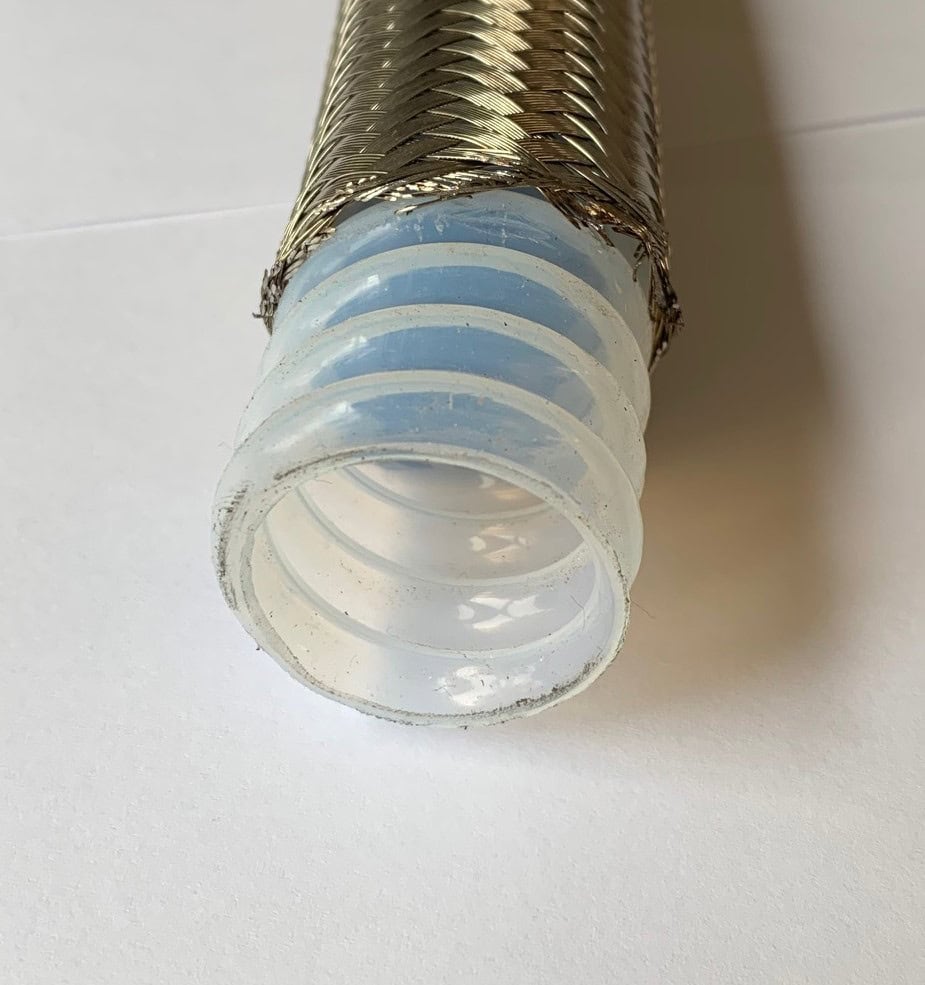

1.1/2" Convoluted Bore PTFE c/w Single Stainless Steel Braid x 10 Mtr
Part No CVPTFE-112
£585.00
ex VAT£702.00 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- 1.1/2" Convoluted Bore PTFE c/w Single Stainless Steel Overbraid x 10 Mtr
- Convoluted bore PTFE internal tube with single stainless steel braid outer
- Minimum order =
- 10 Mtr (other lengths available on request)
- Actual Internal diameter
- 32mm
- Outside diameter
- 47mm
- PTFE Wall Thickness
- 1.25mm
- Minimum Bend Radius
- 115mm
- Maximum Working Pressure
- 20 Bar (290psi)
- Convoluted – The Max. working pressure listed above should be reduced by 1% for each 1 degC above 130 degC up to a maximum of 230 degC.
- Temperature Range
- -150˚C to +230˚C (dependent upon the hose design and the application conditions).
- Weight
- 0.90 Kg/Mtr
