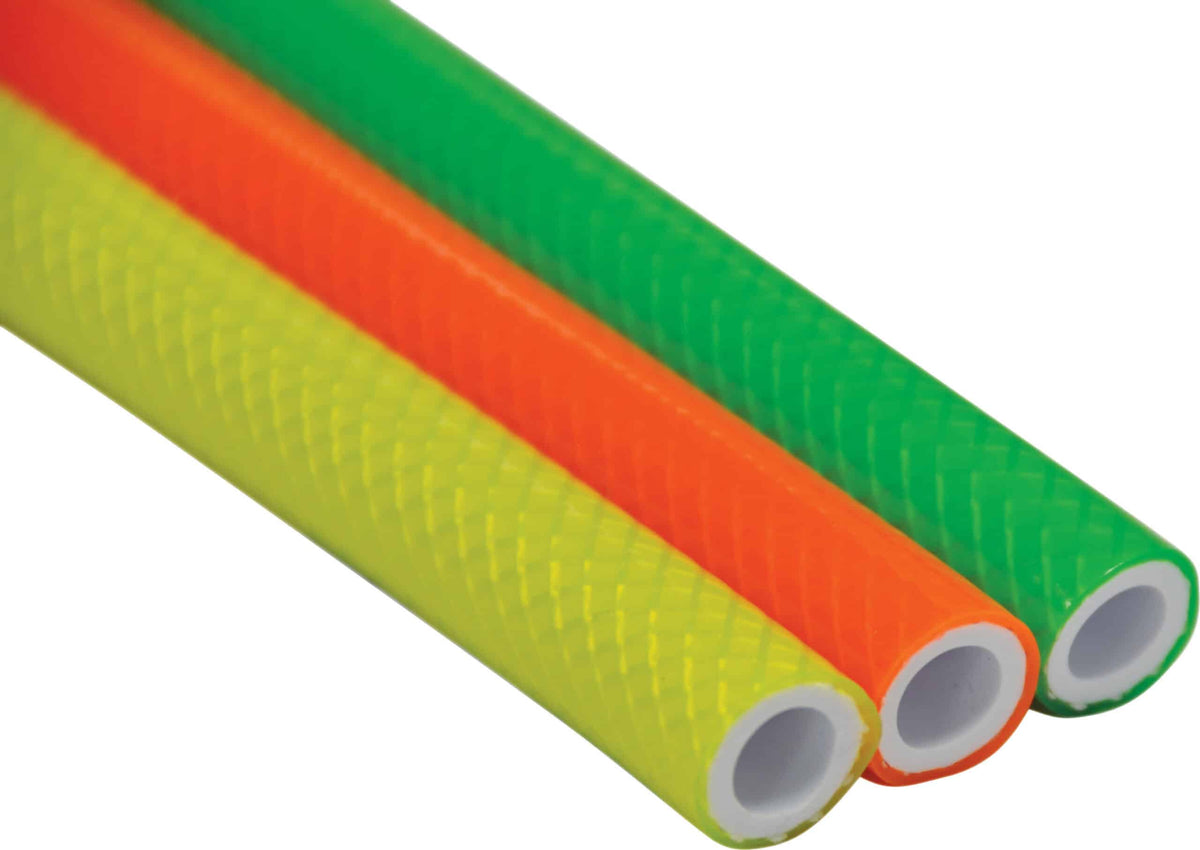

Hi Visibility PVC Reinforced Hose 18.5mm O/D x 12.5mm (1/2") I/D x 30 Mtr

Part No: HN50HVYEL30M

Dimensions: 18.5mm O/D x 12.5mm (1/2") Bore x 30 Metre

Colour: Yellow Fluorescent Outer

Pressure: Working pressure 20 Bar (290 psi) - based on a factor of safety 3:1 on short term burst pressure at 20 Deg C, any increase in temperature above 20 Deg C will result in a decline in burst pressure.

Min. Bend Radius: 55mm

Temperature: -10 to +80 degrees C

Weight: 5.6 Kg per 30 Metre coil

Suitable for Potable Drinking Water.

The components used in production of this hose are compliant with EC and FDA requirements.

Construction: Two layers of clear flexible PVC bonded together encapsulating high tensile polyester fibres.

Chemical Resistance: PVC is resistant to most oxidising and reducing agents and dilute acids and alkalines, for more detailed information please contact us.

Hi Visibility PVC Reinforced Hose Typical Applications

Among all the different applications we can mention:

• Factory airlines
• Pneumatics
• General workshop use
• Chemical transfer
• Water & fluid handling
