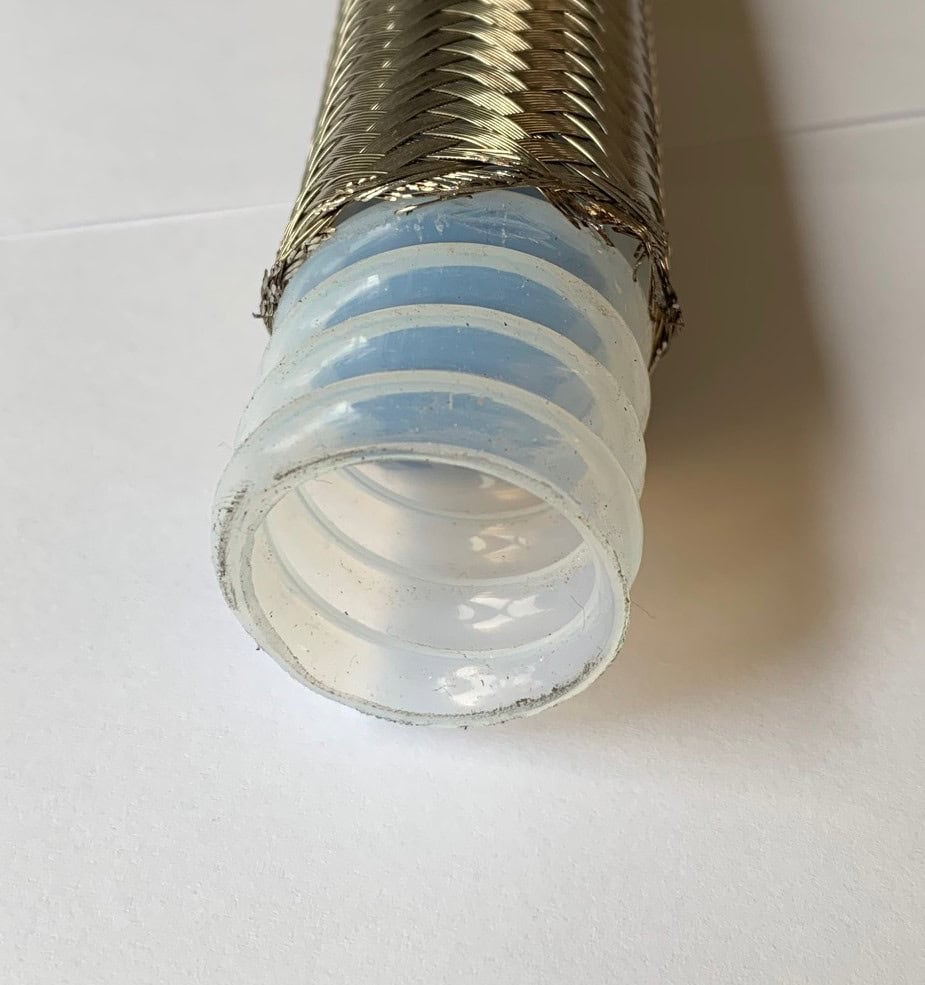

1/2" Convoluted Bore PTFE c/w Single Stainless Steel Braid
Part No CVPTFE-12-5
£130.00
ex VAT£156.00 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- 1/2" Convoluted Bore PTFE c/w Single Stainless Steel Overbraid
- Convoluted bore PTFE internal tube with single stainless steel braid outer
- Price
- Per Metre, for longer lengths just increase the quantity (e.g: Qty 5 = 5 Mtr continuous length)
- Minimum Order
- 5 Metre
- Actual Internal diameter
- 9.5mm
- Outside diameter
- 17mm
- PTFE Wall Thickness
- 0.63mm
- Minimum Bend Radius
- 25mm
- Maximum Working Pressure
- 47 Bar (680psi)
- Convoluted – The Max. working pressure listed above should be reduced by 1% for each 1 degC above 130 degC up to a maximum of 230 degC.
- Temperature Range
- -150˚C to +230˚C (dependent upon the hose design and the application conditions).
- Weight
- 0.20 Kg/Mtr
