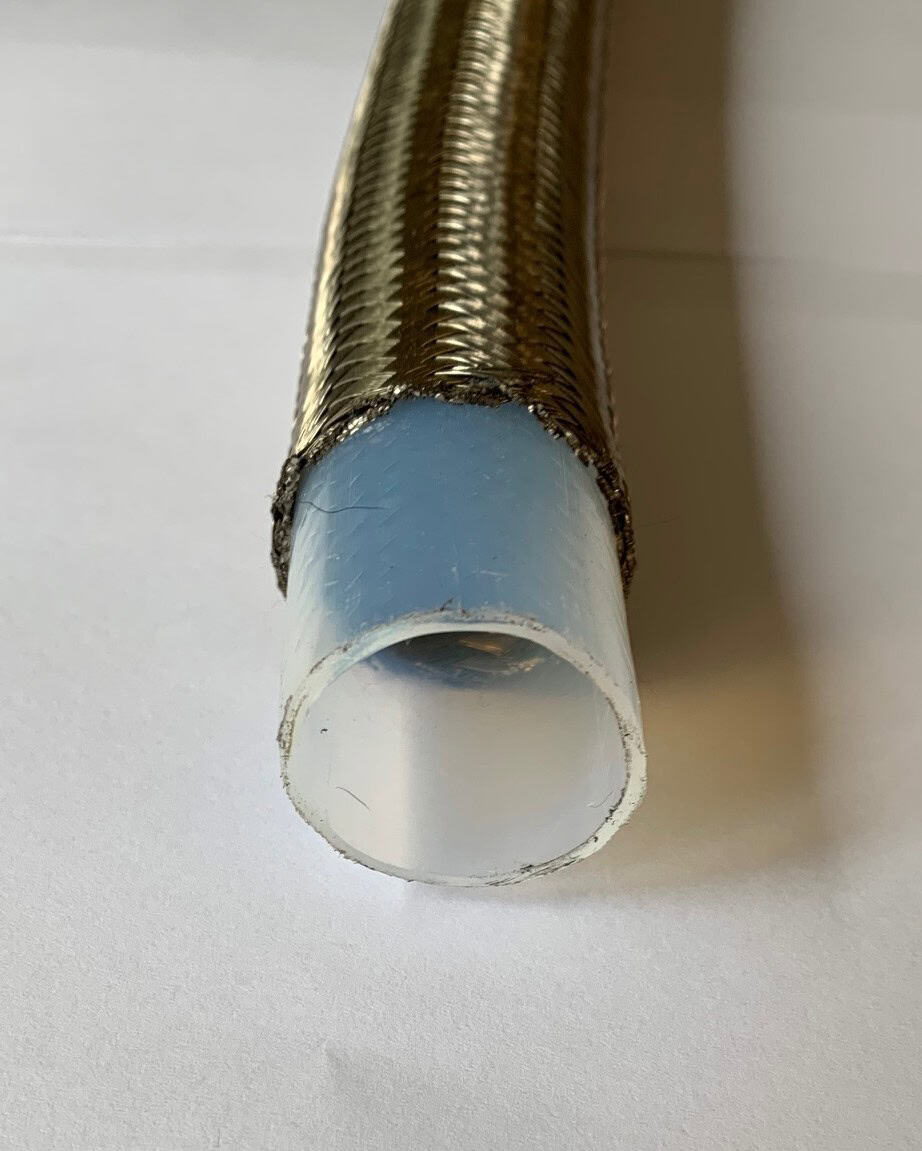

1/4" Smooth Bore PTFE c/w Single Stainless Steel Braid

Part No SBPTFE-14-5

£45.00 ex VAT£54.00 inc VAT

In stock

1/4" Smooth Bore PTFE c/w Single Stainless Steel Braid
Length

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification

1/4" Smooth Bore PTFE c/w Single Stainless Steel Overbraid
Smooth bore PTFE internal tube with single stainless steel braid outer
Price
Per Metre, for longer lengths just increase the quantity (e.g: Qty 5 = 5 Mtr continuous length)
Minimum Order
5 Metre
Internal diameter
6mm-6.5mm (1/4")
Outside diameter
8.3mm-8.7mm
PTFE Wall Thickness
0.63mm
Minimum Bend Radius
60mm
Maximum Working Pressure
240 Bar (3,480psi)
Temperature Range
-150˚C to +230˚C (dependent upon the hose design and the application conditions).
Weight
0.093 Kg/Mtr
