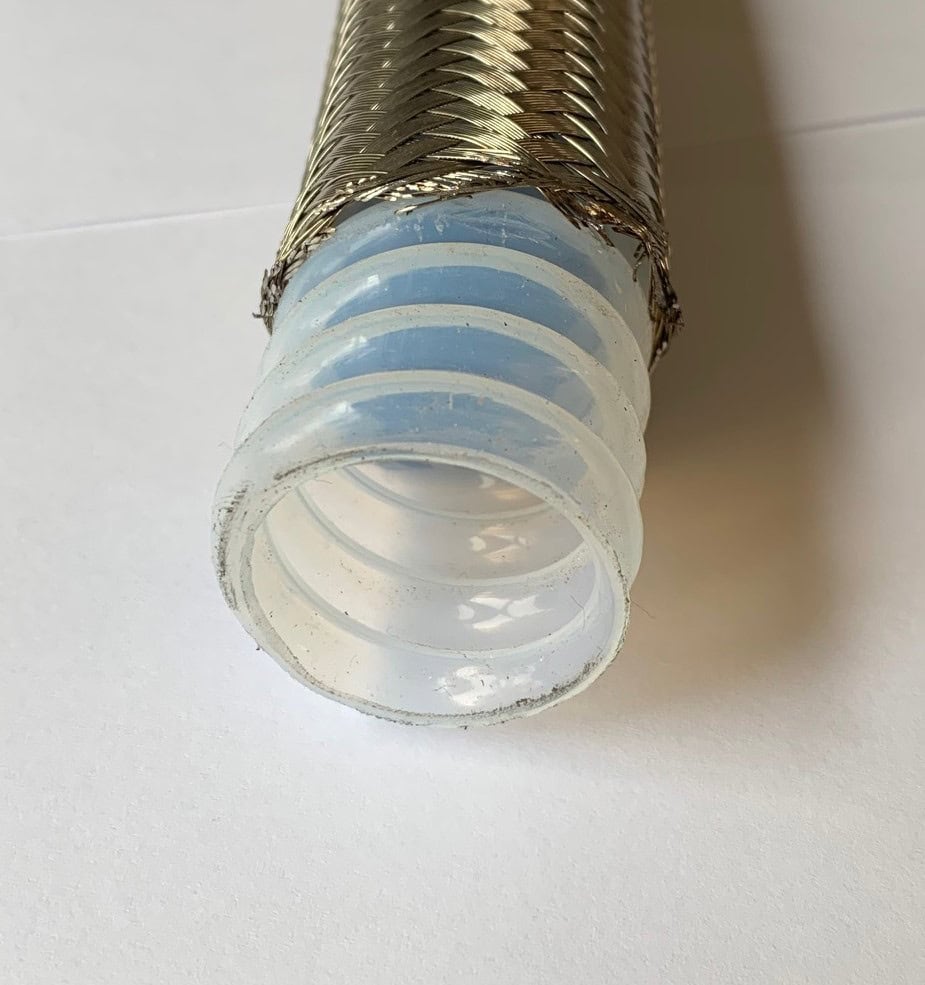

1" Convoluted Bore PTFE c/w Single Stainless Steel Braid
Part No CVPTFE-1-30
£1,485.00
ex VAT£1,782.00 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- 1" Convoluted Bore PTFE c/w Single Stainless Steel Overbraid
- Convoluted bore PTFE internal tube with single stainless steel braid outer
- Price
- Per Metre, for longer lengths just increase the quantity (e.g: Qty 5 = 5 Mtr continuous length)
- Minimum Order
- 5 Metre
- Actual Internal diameter
- 25.5mm
- Outside diameter
- 32mm
- PTFE Wall Thickness
- 1.00mm
- Minimum Bend Radius
- 63mm
- Maximum Working Pressure
- 26 Bar (375psi)
- Convoluted – The Max. working pressure listed above should be reduced by 1% for each 1 degC above 130 degC up to a maximum of 230 degC.
- Temperature Range
- -150˚C to +230˚C (dependent upon the hose design and the application conditions).
- Weight
- 0.47 Kg/Mtr
