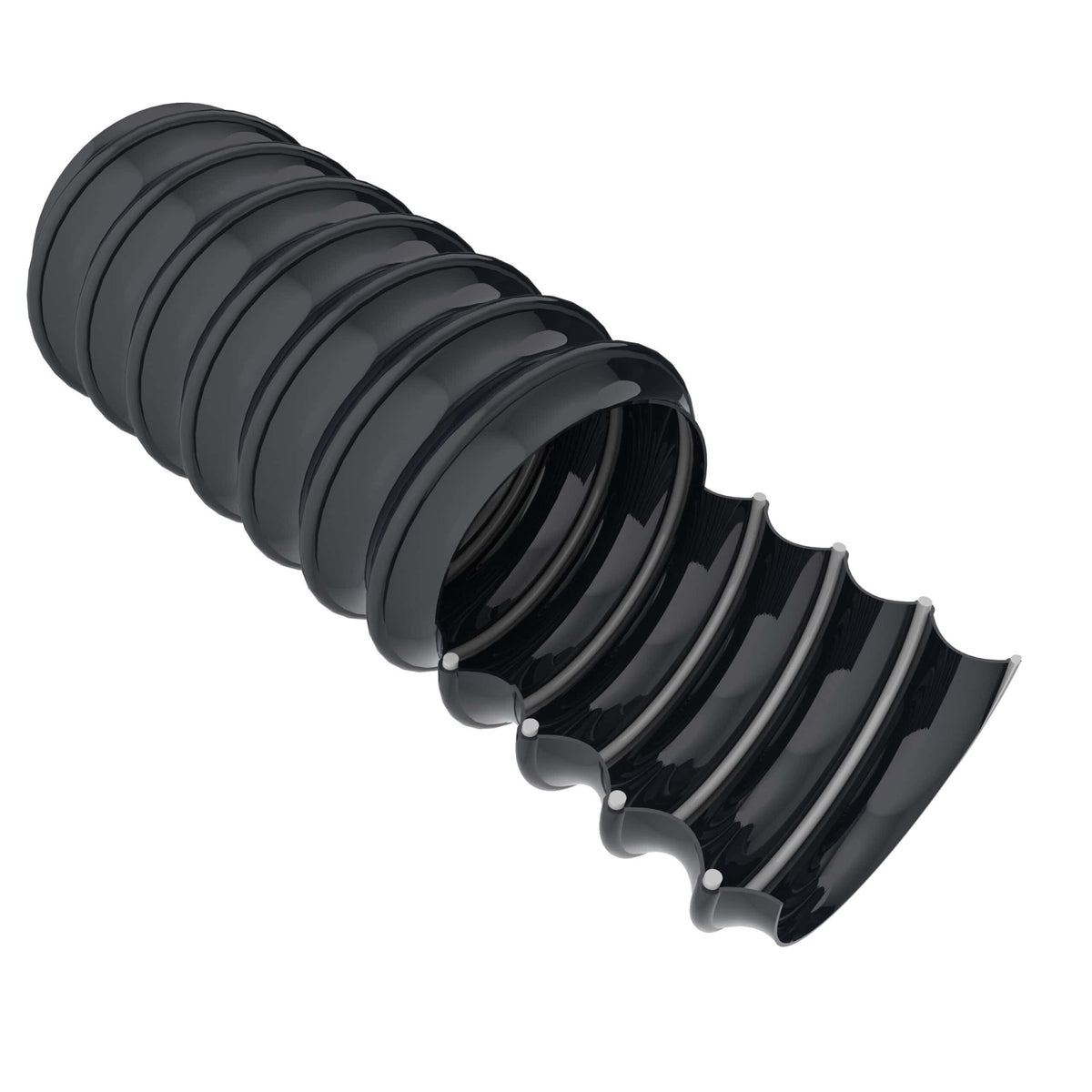

115mm Bore Vacuflex Lightweight Ducting x 10 Mtr

  115mm (4.1/2") Bore Vacuflex Lightweight Ducting x 10 Mtr Part No: VL45BLK10M Manufactured in the UK by Griflex. Internal diameter: 115mm (4.1/2") External diameter: 120mm Wall thickness: 0.7mm overall Length: 10 Mtr supplied in a coil Weight: 8 Kg per 10 Mtr Min. bend radius: 58mm Working pressure: 0.2 Bar

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
