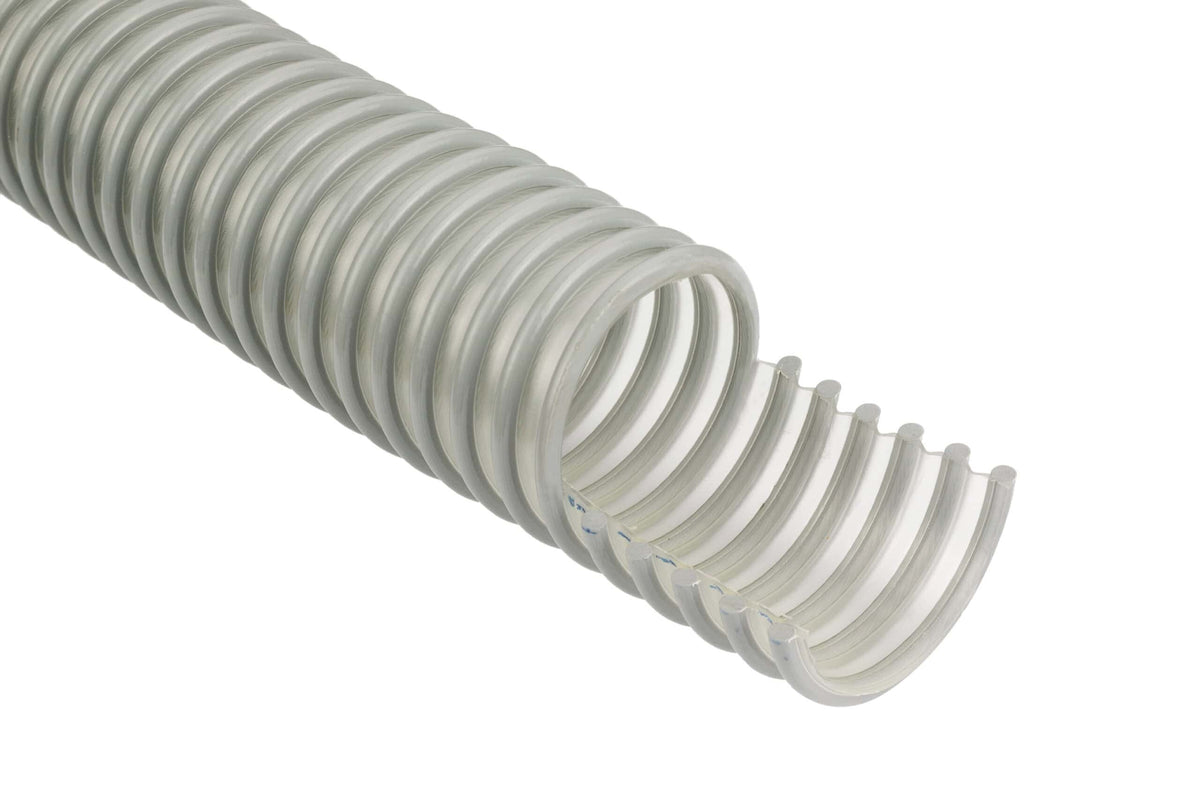

127mm Bore Polyurethane Ducting x 20 Mtr

Part No CPU50CLR20M

£698.00 ex VAT£837.60 inc VAT

In stock

127mm Bore Polyurethane Ducting x 20 Mtr

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification


127mm (5") Bore Polyurethane Ducting x 20 Mtr
Part No: CPU50CLR20M Manufactured in the UK by Griflex. Internal diameter: 127mm (5") External diameter: 138.6mm Wall thickness: 6.0mm overall Length: 20 Mtr supplied in a coil Weight: 26 Kg per 20 Mtr Min. bend radius: 127mm

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
