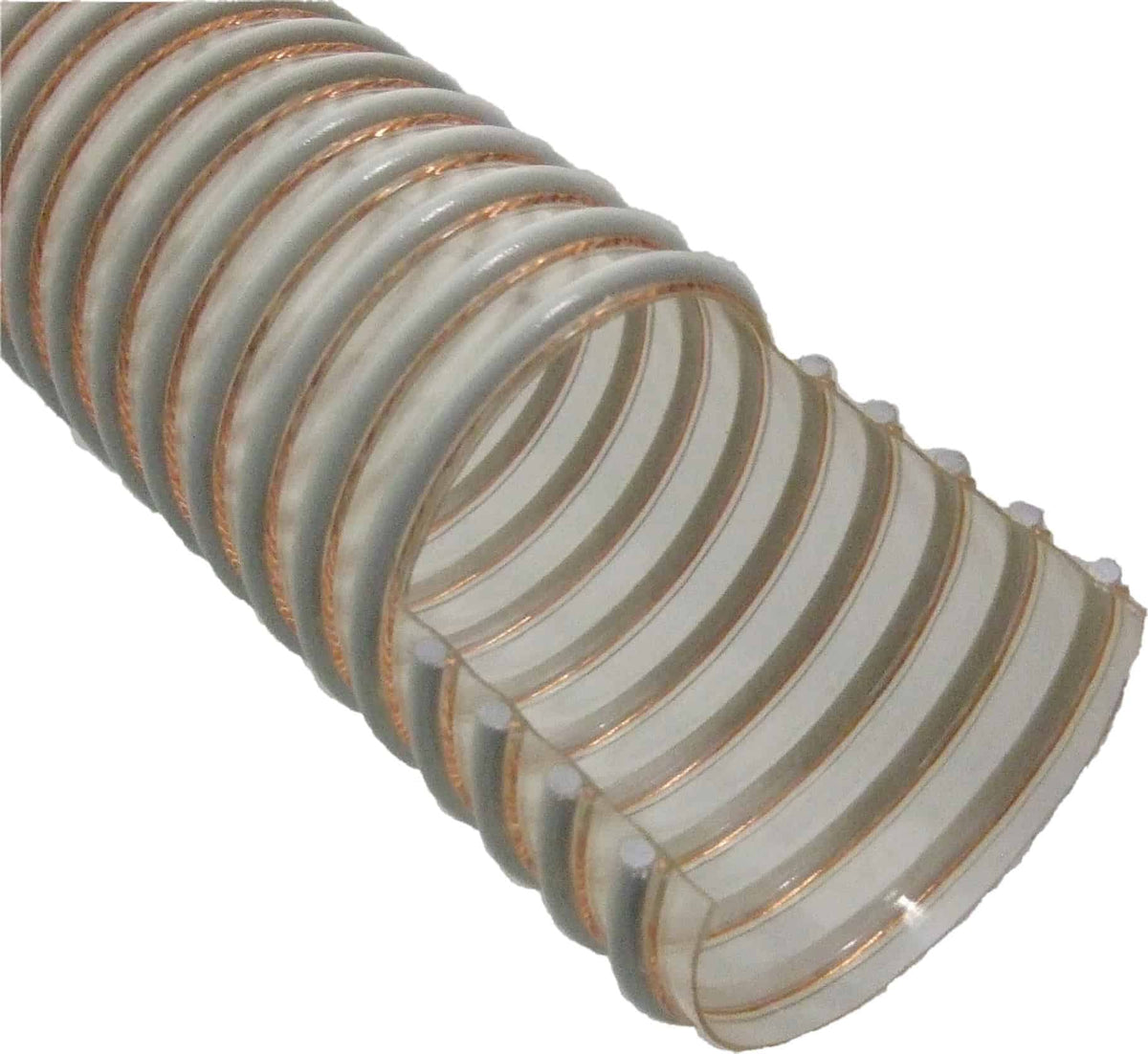

152mm Bore Anti-Static Polyurethane Ducting x 20 Mtr

Part No CPUAS60CLR20M

£1,240.00 ex VAT£1,488.00 inc VAT

In stock

152mm Bore Anti-Static Polyurethane Ducting x 20 Mtr

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification


152mm (6") Bore Anti-Static Polyurethane Ducting x 20 Mtr
Part No: CPUAS60CLR20M Manufactured in the UK by Griflex. Internal diameter: 152mm (6") External diameter: 164.8mm Wall thickness: 6.4mm overall Length: 20 Mtr supplied in a coil Weight: 27.4 Kg per 20 Mtr Min. bend radius: 152mm

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
