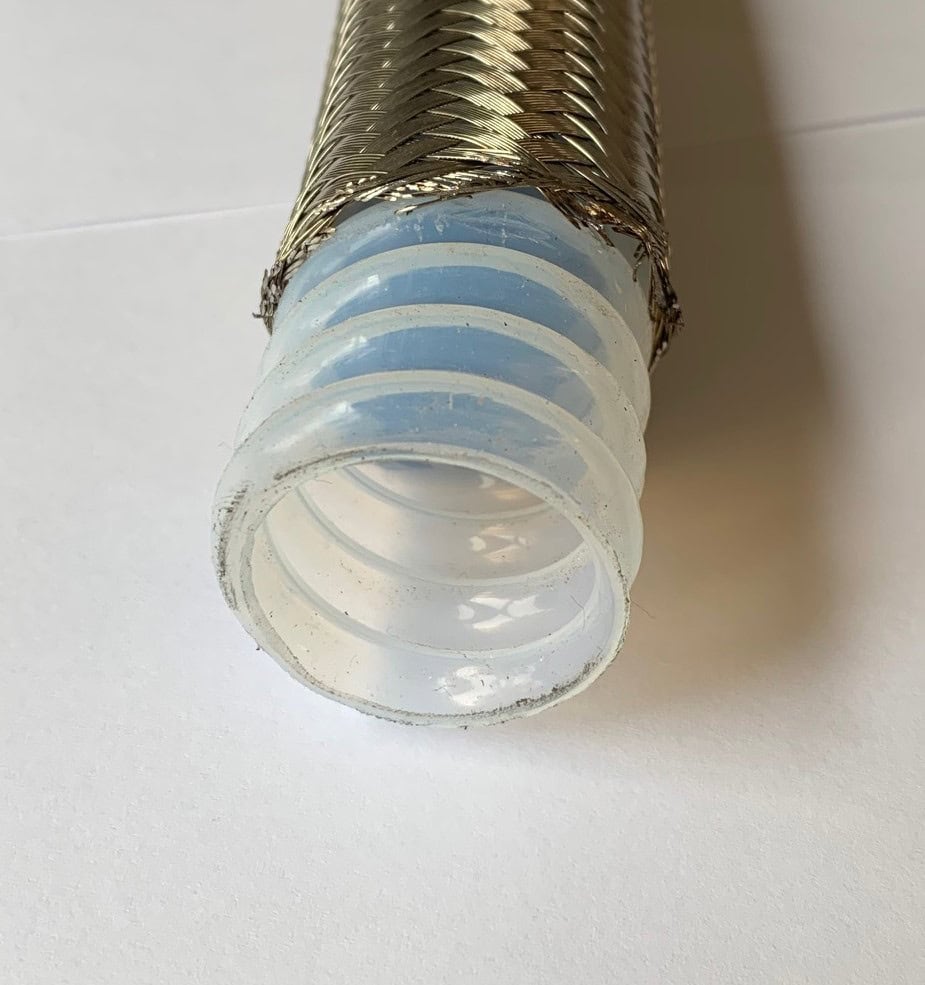

2" Convoluted Bore PTFE c/w Single Stainless Steel Braid x 10 Mtr
Part No CVPTFE-2
£730.00
ex VAT£876.00 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- 2" Convoluted Bore PTFE c/w Single Stainless Steel Overbraid x 10 Mtr
- Convoluted bore PTFE internal tube with single stainless steel braid outer
- Minimum order
- 10 Mtr (other lengths available on request)
- Actual Internal diameter
- 47mm
- Outside diameter
- 61mm
- PTFE Wall Thickness
- 1.25mm
- Minimum Bend Radius
- 130mm
- Maximum Working Pressure
- 15 Bar (215psi)
- Convoluted – The Max. working pressure listed above should be reduced by 1% for each 1 degC above 130 degC up to a maximum of 230 degC.
- Temperature Range
- -150˚C to +230˚C (dependent upon the hose design and the application conditions).
- Weight
- 1.25 Kg/Mtr
