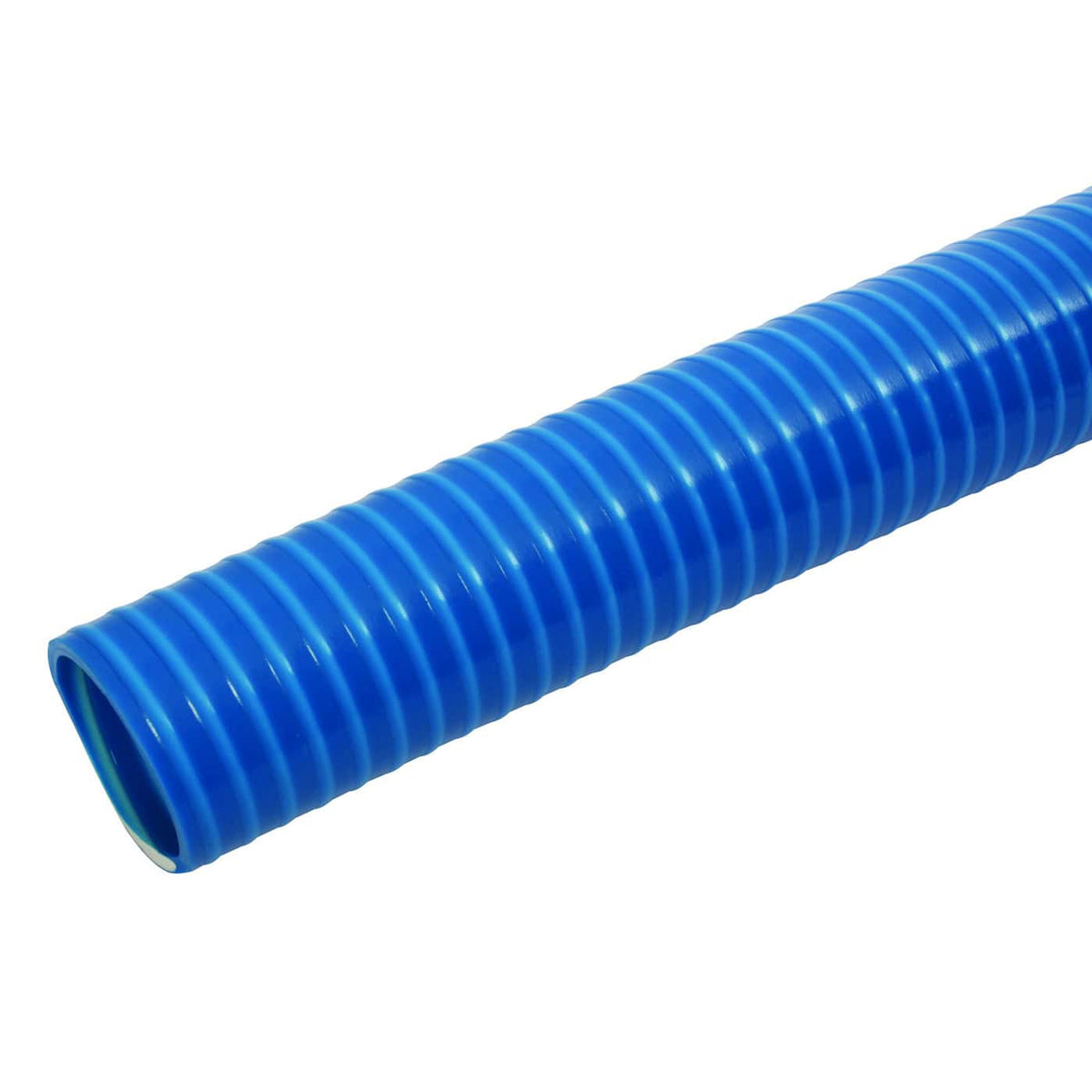

3" Bore Oil Resistant Suction/Discharge Hose
Part No HDOR300-10-metre
£235.00
ex VAT£282.00 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- Part No
- HDOR300
- Dimensions
- 89mm O/D x 76mm (3") Bore
- Lengths available
- 10 Mtr and 30 Mtr. Please note the longest length we can offer in a continuous length is 30 metres.
- Colour
- Available in Blue
- Pressure
- Max working pressure 5 Bar (73 psi)
- Temperature
- -20 to +60 degrees C
- Minimum bend radius
- 355mm
- Weight
- 2.3 Kg/Mtr
- Oil resistant discharge and suction hoses were constructed from a rigid PVC spiral encased in flexible PVC.
- Typical Applications
- Suction and discharge of black fuel oils, gas and other oils with a low aromatic content, kerosene, paraffin, diesel oil, naphalene oil, mineral based hydraulic oils, greases and tall oils.
- Chemical resistance
- Resistant to the oils and greases above. HDOR is not suitable for use with benzine, spirits, petrol, xylol, toluol or solvents containing aromatics, for further details please contact us.
- Vacuum
- 711mm Hg = 94% at 20 degrees C.
- Features
- Weather resistant, durable, smooth bore, good abrasion, rot and chemical resistance, good crush and kink resistance.
