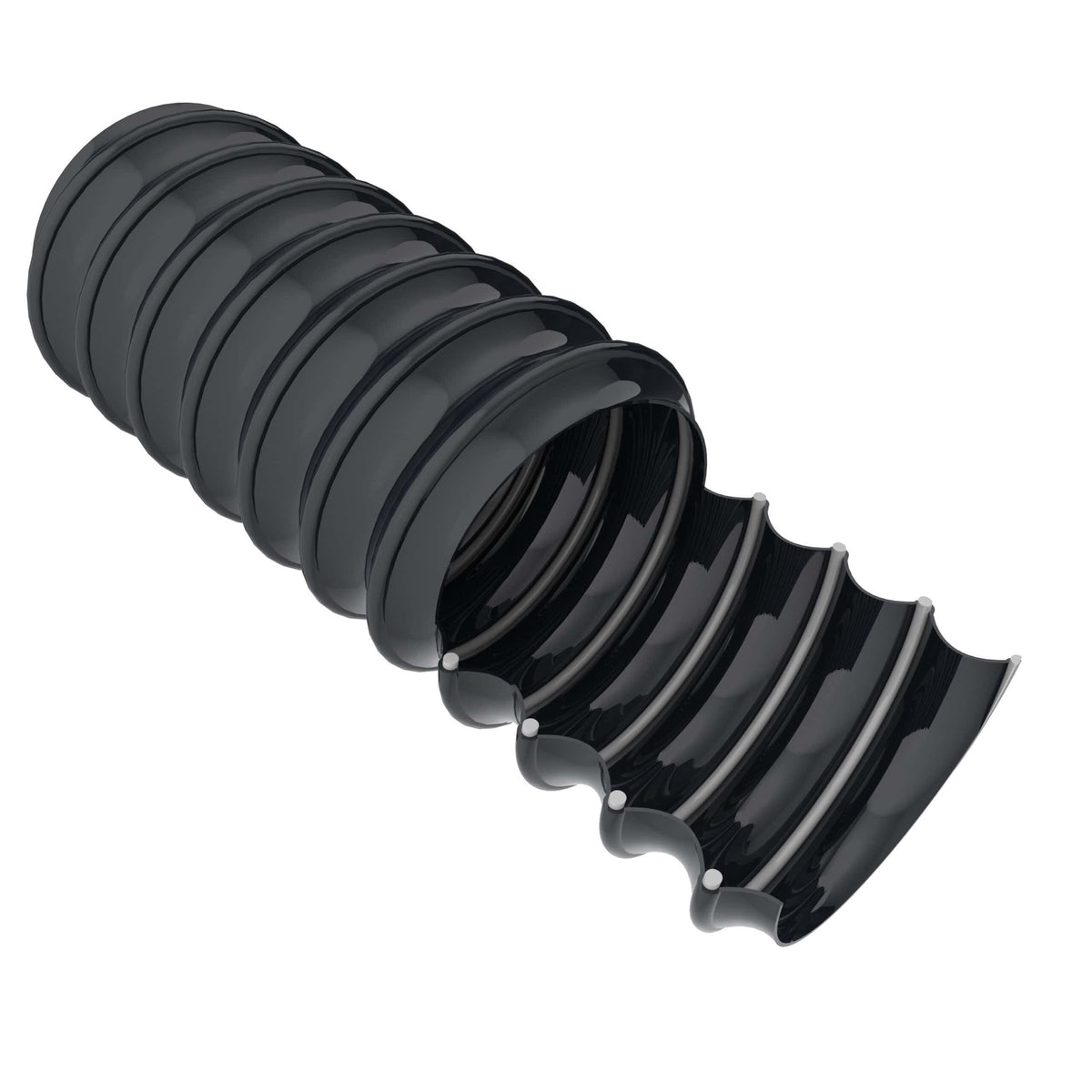

45mm Bore Vacuflex Lightweight Ducting x 10 Mtr

Part No VL17BLK10M

£70.50 ex VAT£84.60 inc VAT

In stock

45mm Bore Vacuflex Lightweight Ducting x 10 Mtr

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification


45mm (1.3/4") Bore Vacuflex Lightweight Ducting x 10 Mtr Part No: VL17BLK10M Manufactured in the UK by Griflex. Internal diameter: 45mm (1") External diameter: 50mm Wall thickness: 0.5mm overall Length: 10 Mtr supplied in a coil Weight: 2.5 Kg per 10 Mtr Min. bend radius: 23mm Working pressure: 1.1 Bar

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
