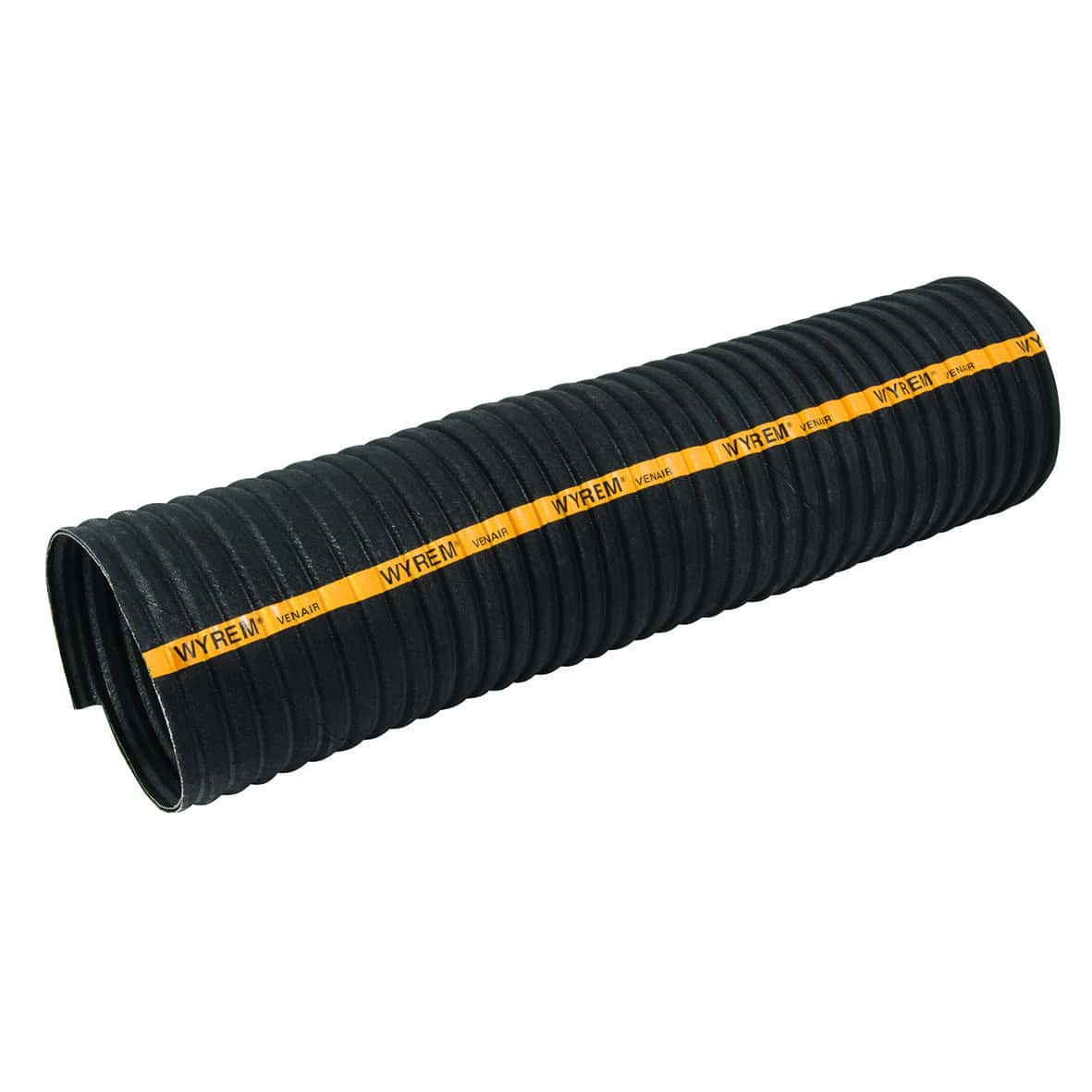

76mm Wyrem Flexible Hose x 6 Mtr

Specification

Wyrem Flexible Ducting

Wyrem flexible hoses are recommended for air fume and particle extraction and suction, dust and exhaust gases, and ventilation in general industries.

Inner Diameter

76mm (2.99")

Length

6 Metre

Wall Thickness

1.2mm (0.05")

Max. Working Pressure

0.35 Bar at 20 Deg C (5.08psi)

Vacuum Pressure

0.30 Bar at 20 Deg C (4.35psi)

Minimum Bend Radius

84mm (3.31")

Weight

850gm per metre

Properties:

Exceptionally robust and durable

Excellent flexibility

Highly resistant to ozone

Good vacuum resistance

Corrugated inner and outer appearance

Inner and outer black in colour

Standard manufactured length 6 Metre

Temperature Range:

-20 Deg C to + 100 Deg C (-4 Deg F to + 212 Deg F)

Technical Specification:

Wyrem hose is not pressure tight and should not be used in pressurised applications. In these cases the maximum accepted pressure is 0.35 Bar (5.08 psi).

Gas oil and oildrops do not damage Wyrem, but the hose should not be used to transport fuel and oil, and should never be submerged in these liquids.

Always check the compatibility of the material to transportwith the chlroprene (neoprene).

Construction:

Wyrem is manufactured with double reinforced layers of chloroprene (neoprene) coated cotton and two spring helices. The inner helix is visible and the second one is trapped between the layers of cloth. Neoprene offers high resistance to chemical attack in both acidic and basic solutions. Cotton has better mechanical strength than glass fibre fabric.

For further information please ring Hoseshop on 01423 712038 or email us at sales@hoseshop.net
