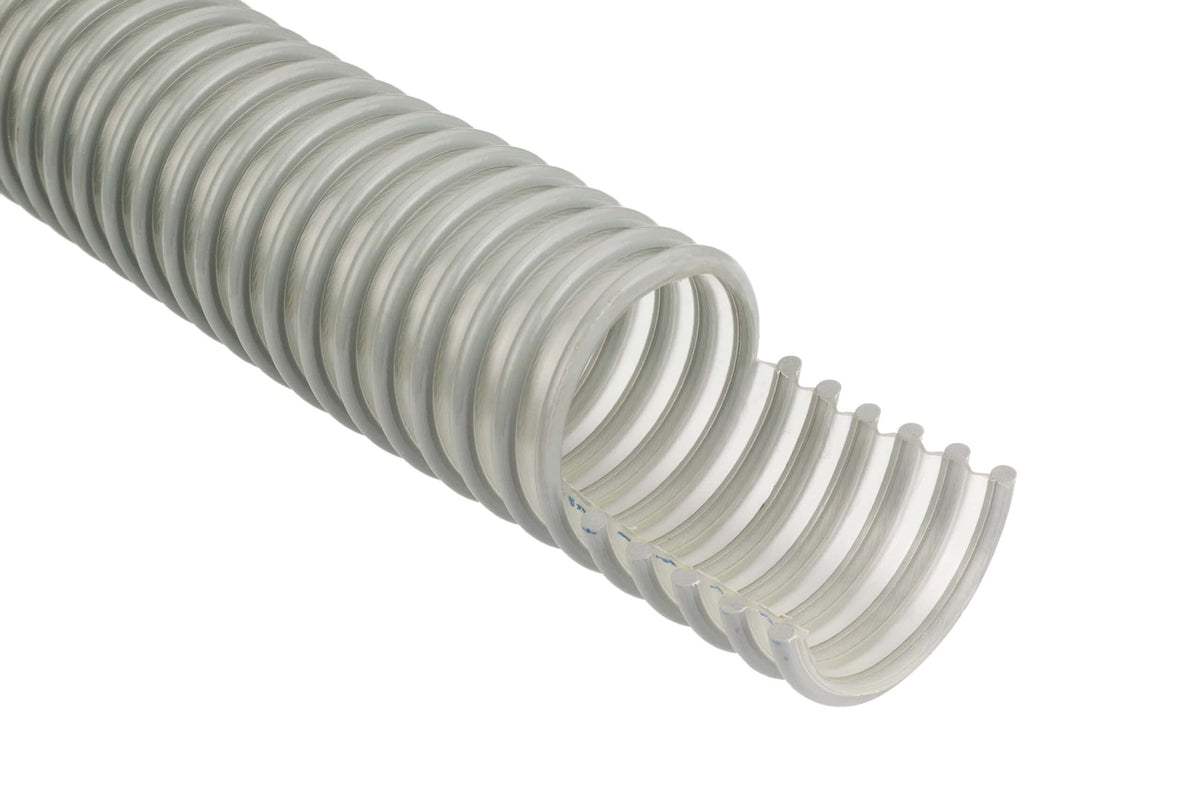

63mm Bore Polyurethane Ducting x 20 Mtr



63mm (2.1/2") Bore Polyurethane Ducting x 20 Mtr

Part No: CPU25CLR20M Manufactured in the UK by Griflex. Internal diameter: 63mm (2.1/2") External diameter: 70.6mm Wall thickness: 3.8mm overall Length: 20 Mtr supplied in a coil Weight: 9 Kg per 20 Mtr Min. bend radius: 63mm

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
