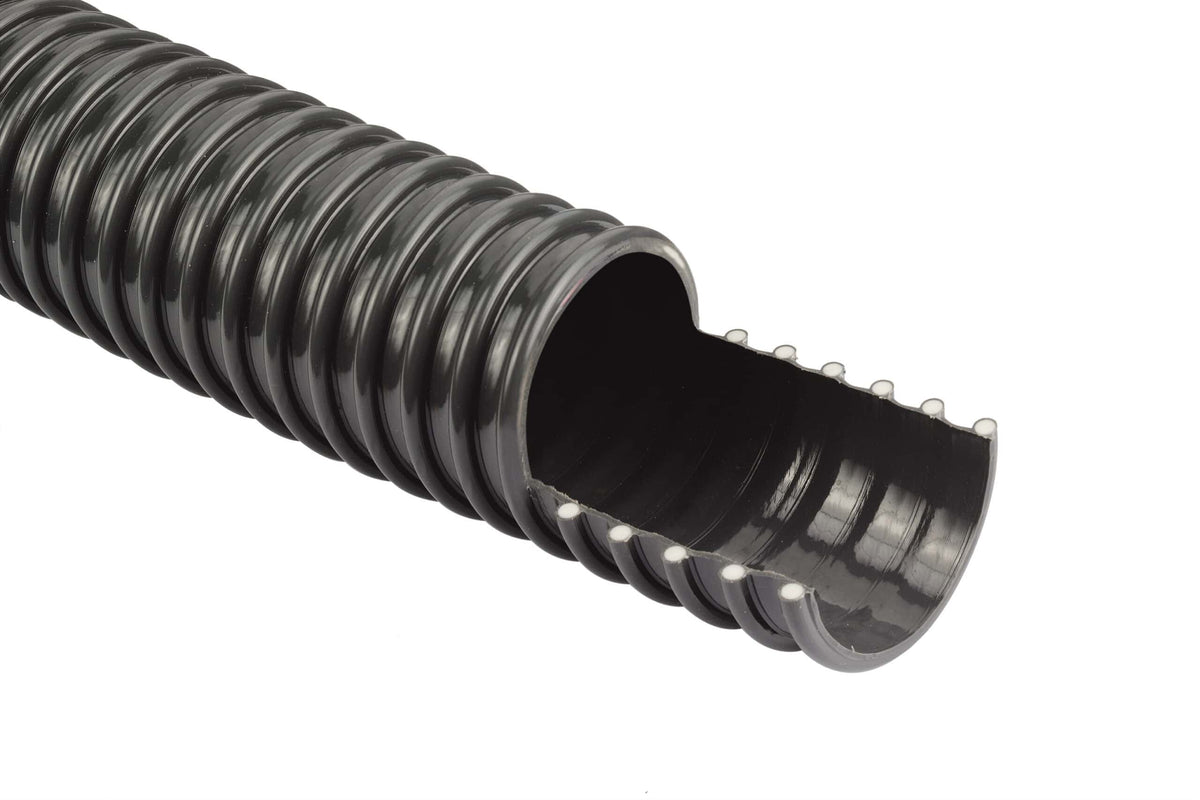

63mm Bore PVC Ducting x 30 Mtr



Part No: CVL25GRY30M

63mm (2.1/2") Bore PVC Ducting x 30 Mtr Manufactured in the UK by Griflex. Internal diameter: 63.5mm (2.1/2") External diameter: 71.5mm Wall thickness: 4.0mm overall Colour: Dark grey, white helix Length: 30 Mtr supplied in a coil Weight: 19.5 Kg per 30 Mtr Min. bend radius: 63mm

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
