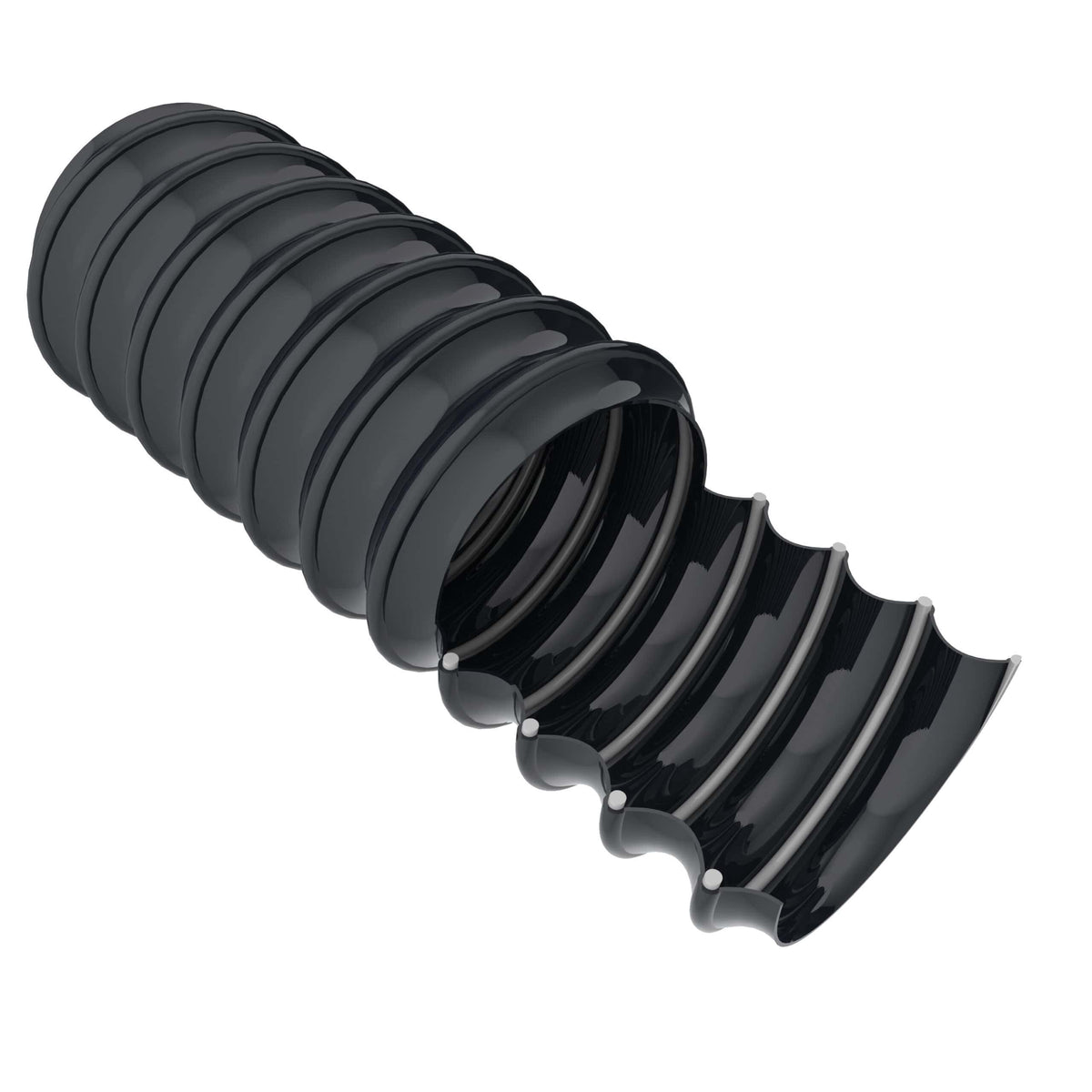

76mm Bore Vacuflex Lightweight Ducting x 10 Mtr

  76mm (3") Bore Vacuflex Lightweight Ducting x 10 Mtr Part No: VL30BLK10M Manufactured in the UK by Griflex. Internal diameter: 76mm (3") External diameter: 81mm Wall thickness: 0.5mm overall Length: 10 Mtr supplied in a coil Weight: 6 Kg per 10 Mtr Min. bend radius: 38mm Working pressure: 0.6 Bar

Maximum working pressure is based on a factor of safety of 3:1 on short term burst pressure at 20 Deg C. Weights are approximate dependant upon working tolerance and density of materials. Bending diameter information is intended as a guide to the minimum bend radius at 20 Deg C ambient temperature without restricting the bore. It does not mean that the hose cannot be bent below the given dimensions but restriction is likely to occur.
