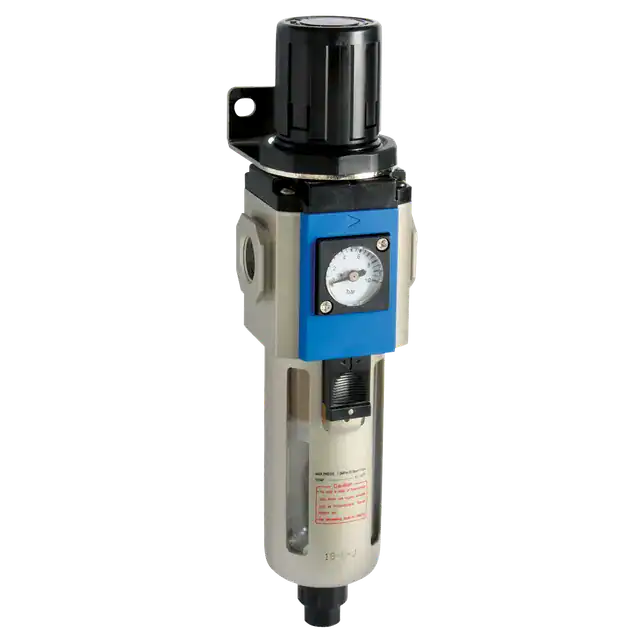

Air Filter/Regulator (4000 Lpm)
Part No KFRS300-15-F-3
£67.25
ex VAT£80.70 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- Air Filter/Regulator
- Part No
- KFRS300-..-F-3
- Air Filter/Regulators supplied with Mounting Bracket and embedded square 10 Bar Pressure Gauge, to save installation space.
- Supplied with Neck Mounting Bracket.
- Semi-automatic drain - see below for description.
- 40 Micron filter fitted as standard, 5 micron elements available on request.
- Self locking adjustment prevents accidental adjustment.
- Compact design makes installation easy.
- Pressure adjustment is reliable and accurate.
- Guarded Bowl.
- Bowl capacity: 40cc
- Fluid
- Compressed air only
- Inlet & Outlet Port
- 1/4" BSPP Female, 3/8" BSPP Female or 1/2" BSPP Female
- Pressure Range
- 0.5 Bar to 9 Bar (7-130psi)
- Temperature Range
- -5 to +60 Deg C
- Weight
- 500g
- Notes before installation:
- Check flow direction and thread type is correct
- Check the installation conditions meet the technical requirements of working pressure and temperature
- Use compressed air only
- If the unit is dismantled use port plugs to stop dirt ingress into the unit
- Semi automatic drain:
- The drain does not empty continuously.
- It opens automatically when system pressure is shut off or drops to zero.
- While the system is pressurized, the drain stays closed.
- This prevents air loss during operation but still removes moisture when the system stops
