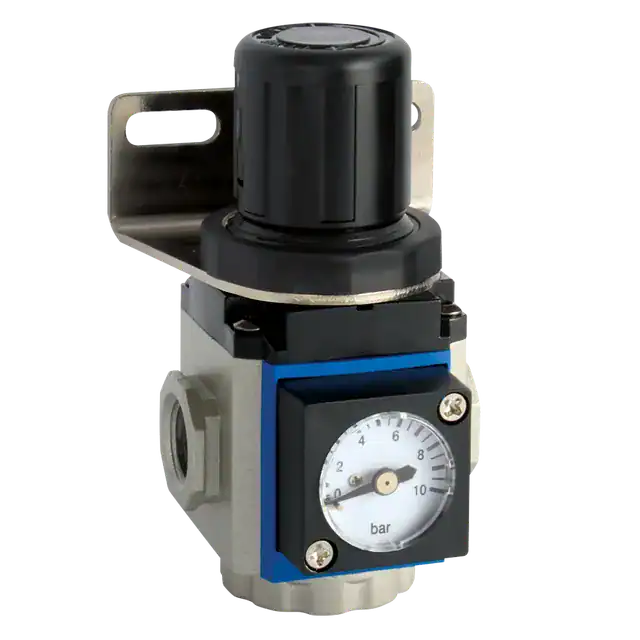

Air Regulator (3000 Lpm)
Part No KRS200-06-F-3
£46.50
ex VAT£55.80 inc VAT
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
- Air Regulator
- Part No
- KRS200-..-F-3
- Air Regulators supplied with Mounting Bracket and embedded square 10 Bar Pressure Gauge, to save installation space.
- The regulator can be panel mounted or mounted in pipework.
- Self locking adjustment prevents accidental adjustment.
- Compact design makes installation easy.
- Pressure adjustment is reliable and accurate.
- Fluid
- Compressed air only
- Inlet & Outlet Port
- 1/8" BSPP Female or 1/4" BSPP Female
- Pressure Range
- 0.5 Bar to 9 Bar (7-130psi)
- Temperature Range
- -5 to +60 Deg C
- Weight
- 160g
- Notes before installation:
- Check flow direction and thread type is correct
- Check the installation conditions meet the technical requirements of working pressure and temperature
- Use compressed air only
- If the unit is dismantled use port plugs to stop dirt ingress into the unit
