Double Ply Neoprene Ducting x 4 Mtr

Part No NEOL-25mm Inside Diameter--NEW

£90.00 ex VAT£108.00 inc VAT

In stock

Double Ply Neoprene Ducting x 4 Mtr
Size

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification

Double Ply Neoprene Ducting - Lined x 4 Mtr length

Description:

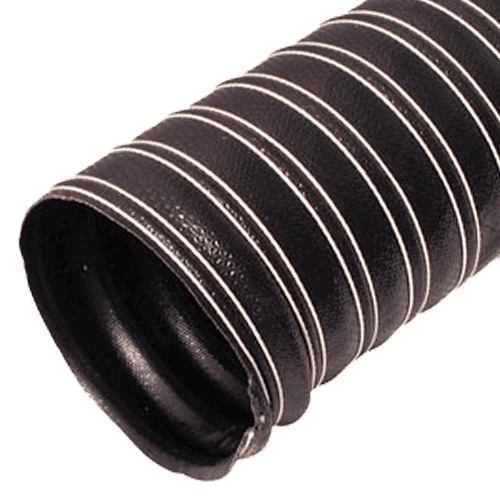

Double ply neoprene ducting is made of two layers of neoprene coated glass fibre fabric, an encapsulated stainless spring steel helix between the plies and outer twin neoprene coated glass fibre cords.

Applications:

Conveying hot or cold air, fumes and light powders and dust at low pressure. For granulated/plastic dryers, hot air drying machines in the plastic industry, blown film industry, ink drying plus automotive and transportation applications.

Key Features:

Very flexible and lightweight

Good heat resistance

Smooth internal

Small bend radius for installation in tight spaces

Temperature Range:

-50 Deg C to + 150 Deg C (in 20 Deg C ambient)

Price is per 4 Mtr length (other lengths available on request)

Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
25mm 28mm 2.8 Bar 15mm 0.62
32mm 35mm 2.7 Bar 16mm 0.76
38mm 41mm 2.6 Bar 18mm 0.85
40mm 43mm 2.6 Bar 18mm 0.85
51mm 55mm 2.6 Bar 24mm 1.1
57mm 61mm 2.5 Bar 61mm 1.26
60mm 64mm 2.5 Bar 31mm 1.32
63mm 67mm 2.4 Bar 31mm 1.42
70mm 76mm 2.1 Bar 35mm 1.5



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
76mm 81mm 2.1 Bar 38mm 1.8
80mm 85mm 2.1 Bar 40mm 1.9
83mm 88mm 2.1 Bar 42mm 2
89mm 94mm 2.0 Bar 44mm 2.2
102mm 107mm 1.9 Bar 52mm 2.5
115mm 120mm 1.5 Bar 59mm 3.2
127mm 133mm 1.5 Bar 64mm 3.5
152mm 158mm 1.2 Bar 75mm 4.3

Other sizes and lengths are available on request

​For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.netOther sizes and lengths are available on request.
