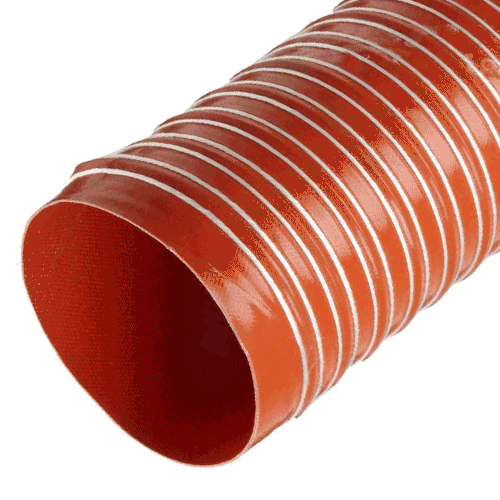

Double Ply Silicone Coated Glass Fabric Ducting x 4 Mtr
Part No DUCSIL2-38mm Inside Diameter
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
Double Ply Silicone Ducting x 4 Mtr Lengths
Description
Double ply silicone ducting is made of 2 layers of silicone coated glass fibre fabric with an encapsulated spring steel wire helix and twin silicone coated outer glass cord.
Sizes: Items *Bold, are standard sizes, other sizes are available, please enquire at: sales@hoseshop.net
Applications
Suitable for air handling and fume extraction, where extremes of temperature are involved.
Dust and fume extraction, heating, ventilation, automotive, transportation, granulate drying, powder extraction and exhaust gas extraction.
Temperature: -80 Deg C to +300 Deg C (in 20 Deg C ambient)
Key features:
Very flexible and lightweight
Very good heat resistance
Smooth bore allows optimum airflow
Excellent heat ageing characteristics
Good low temperature flexibility
Price is per 4 Mtr length (other lengths available on request)
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 19mm | 22mm | 3 Bar | 15mm | 0.5 |
| 25mm | 28mm | 2.8 Bar | 15mm | 0.62 |
| 32mm | 35mm | 2.7 Bar | 16mm | 0.76 |
| *38mm | 41mm | 2.6 Bar | 18mm | 0.85 |
| 40mm | 43mm | 2.6 Bar | 18mm | 0.85 |
| *51mm | 54mm | 2.6 Bar | 24mm | 1.1 |
| 57mm | 60mm | 2.5 Bar | 28mm | 1.26 |
| 60mm | 63.5mm | 2.5 Bar | 31mm | 1.32 |
| *63mm | 66.5mm | 2.4 Bar | 31mm | 1.4 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 70mm | 73.5mm | 2.1 Bar | 35mm | 1.5 |
| *76mm | 79.5mm | 2.1 Bar | 38mm | 1.8 |
| 80mm | 83.5mm | 2.1 Bar | 40mm | 1.9 |
| 83mm | 86.5mm | 2.1 Bar | 42mm | 2 |
| 89mm | 92.5mm | 2.0 Bar | 44mm | 2.2 |
| *102mm | 106mm | 1.9 Bar | 52mm | 2.5 |
| 115mm | 119mm | 1.5 Bar | 59mm | 3.2 |
| *127mm | 131mm | 1.5 Bar | 64mm | 3.5 |
| 141mm | 145.5mm | 1.3 Bar | 70mm | 3.8 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| *152mm | 156.5mm | 1.2 Bar | 75mm | 4.3 |
| 159mm | 163.5mm | 1.1 Bar | 80mm | 4.46 |
| 164mm | 168.5mm | 1.1 Bar | 83mm | 4.7 |
| 180mm | 184mm | 1.0 Bar | 90mm | 5.2 |
| *203mm | 208mm | 0.7 Bar | 101mm | 5.92 |
| 254mm | 259mm | 0.5 Bar | 150mm | 6.50 |
Non-standard sizes are available, please enquire at sales@hoseshop.net
For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.net
