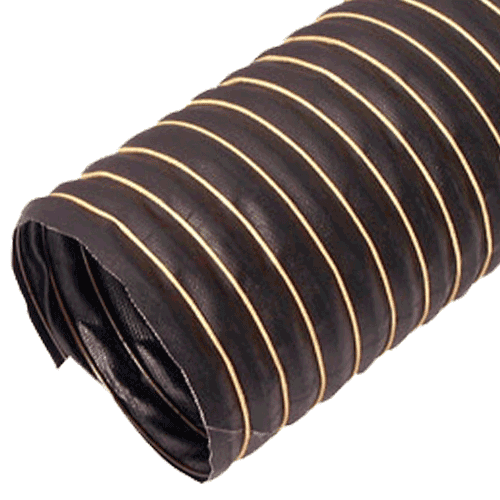

Single Ply Neoprene Ducting x 4 Mtr

Part No NEOU-306mm Inside Diameter

£247.40 ex VAT£296.88 inc VAT

In stock

Single Ply Neoprene Ducting x 4 Mtr
Size

Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.

Specification

Single Ply Neoprene Ducting - Unlined x 4 Mtr length

Description:

Single ply neoprene ducting is made from one layer of neoprene coated glass fibre fabric, an internal stainless steel helix and a single outer neoprene coated glass fibre cord.

Applications:

Conveying hot or cold air, fumes and light dust at low pressure. For granulated/plastic dryers, hot air drying machines in the plastic industry, blown film industry, ink drying plus automotive and transportation applications.

Key Features:

Very flexible and lightweight

Good heat resistance

Smooth internal

Small bend radius for installation in tight spaces

Temperature Range:

-50 Deg C to + 150 Deg C (in 20 Deg C ambient)

Price is per 4 Mtr length (other lengths available on request)

Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
19mm 22mm 1.8 Bar 8mm 0.4
25mm 28mm 1.5 Bar 8mm 0.52
32mm 35mm 1.5 Bar 10mm 0.6
38mm 41mm 1.5 Bar 12mm 0.76
40mm 43mm 1.5 Bar 13mm 0.8
51mm 54mm 1.5 Bar 16mm 1.1
57mm 60mm 1.3 Bar 18mm 1.26
60mm 63.5mm 1.3 Bar 20mm 1.32
63mm 66.5mm 1.3 Bar 22mm 1.4



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
70mm 73.5mm 1.2 Bar 24mm 1.50
76mm 79.5mm 1.1 Bar 27mm 1.6
80mm 83.5mm 1.1 Bar 28mm 1.65
83mm 86.5mm 1.1 Bar 28mm 1.72
89mm 92.5mm 1.1 Bar 29mm 2.58
102mm 106mm 1.1 Bar 35mm 3.2
115mm 119mm 1 Bar 40mm 3
127mm 131mm 0.9 Bar 46mm 3.16
152mm 156.5mm 0.8 Bar 51mm 3.8



Inside Diameter Outside Diameter Max. Working Pressure Min. Bend Radius Weight (Kg/Mtr)
180mm 185mm 0.6 Bar 60mm 3.9
203mm 208mm 0.6 Bar 68mm 5.04
254mm 259mm 0.4 Bar 102mm 6
306mm 311mm 0.1 Bar 123mm 7.5

Other sizes and lengths are available on request.

​For further information please ring Hoseshop on 01423 712038 or email us at: sales@hoseshop.net
