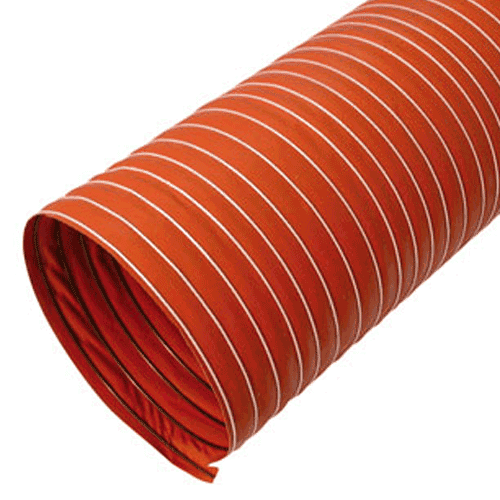

Single Ply Silicone Coated Glass Fabric Ducting x 4 Mtr
Part No DUCSIL1-38mm Inside Diameter
In stock
Free UK mainland delivery on orders over £150 ex VAT. Despatched in 3 to 5 working days. Need a bespoke length? Call 01423 712038.
Specification
Single Ply Silicone Ducting x 4 Mtr Lengths
Description
Single layer silicone ducting is made of 1 layer of silicone coated glass fibre fabric with an internal spring steel helix and a single silicone coated outer glass fibre cord.
It is a high temperature ducting that is used in a variety of industries.
Sizes: Items *Bold, are standard sizes, other sizes are available, please enquire at: sales@hoseshop.net
Applications
Suitable for air handling and extraction, where extreme of temperature are involved.
Hot air drying machines, automotive, transportation, graphics industry, fume and dust extraction and blown film extrusion.
Temperature: -80 Deg C to +300 Deg C (in 20 Deg C ambient)
Key features:
Very flexible and lightweight
Very good heat resistance
Excellent heat ageing characteristics
Good low temperature flexibility
Price is per 4 Mtr length (other lengths available on request)
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 19mm | 22mm | 1.8 Bar | 8mm | 0.4 |
| 25mm | 28mm | 1.5 Bar | 8mm | 0.52 |
| 32mm | 35mm | 1.5 Bar | 10mm | 0.6 |
| *38mm | 41mm | 1.5 Bar | 12mm | 0.76 |
| 40mm | 43mm | 1.5 Bar | 13mm | 0.8 |
| *51mm | 54mm | 1.5 Bar | 16mm | 1.1 |
| 57mm | 60mm | 1.3 Bar | 18mm | 1.26 |
| 60mm | 63.5mm | 1.3 Bar | 20mm | 1.32 |
| *63mm | 66.5mm | 1.3 Bar | 22mm | 1.4 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 70mm | 73.5mm | 1.2 Bar | 24mm | 1.50 |
| *76mm | 79.5mm | 1.1 Bar | 27mm | 1.6 |
| 80mm | 83.5mm | 1.1 Bar | 28mm | 1.65 |
| 83mm | 86.5mm | 1.1 Bar | 28mm | 1.72 |
| 89mm | 92.5mm | 1.1 Bar | 29mm | 2.58 |
| *102mm | 106mm | 1.1 Bar | 35mm | 3.2 |
| 115mm | 119mm | 1 Bar | 40mm | 3 |
| *127mm | 131mm | 0.9 Bar | 46mm | 3.16 |
| *152mm | 156.5mm | 0.8 Bar | 51mm | 3.8 |
| Inside Diameter | Outside Diameter | Max. Working Pressure | Min. Bend Radius | Weight (Kg/Mtr) |
| 180mm | 185mm | 0.6 Bar | 60mm | 3.9 |
| *203mm | 208mm | 0.6 Bar | 68mm | 5.04 |
| 254mm | 259mm | 0.4 Bar | 102mm | 6 |
| 306mm | 311mm | 0.1 Bar | 123mm | 7.5 |
Non-standard sizes are available, please enquire at: sales@hoseshop.net
